Frigidaire 30'' Electric Range

Quick Boil Element
Get meals to the table faster with the powerful 3,000W Quick Boil element.

Flexible Five Element Cooktop
Experience ultimate cooking flexibility with a cooktop that has five elements designed to handle all of your cooking needs.

Even Baking Technology
Designed to deliver even baking results, every time.

SpaceWise® Dual Expandable Element
Get two elements in one with the Dual Expandable element - a 6" inner ring for smaller pots and pans and a 9" outer ring for larger cookware.

5.3 Cu. Ft. Oven Capacity
Large 5.3 cu. ft. oven capacity allows you to cook more at once.

Extra Wide Store-More™ Storage Drawer
Our redesigned Store-More™ Storage drawer is now even wider - allowing you to store any unused oven racks, baking trays and more!

Cooktop Keep Warm Zone
Keep food warm until everything - and everyone - is ready.

Cooktop
Cooking Surface Type: Smooth
Element On Indicator Light: Yes
Hot-Surface Indicator Light: Yes

Cooktop Performance
Right Front Element Burner Size: 9"
Right Rear Element Burner Size: 6"
Left Front Element Burner Size (Small): 6"
Left Front Element Burner Size (Large): 9"
Left Rear Element Burner Size: 6"
Right Front Element Burner: 3000 Watts
Right Rear Element Burner: 1200 Watts
Left Front Element Burner (Small): 1400 Watts
Left Front Element Burner (Large): 3000 Watts
Left Rear Element Burner: 1200 Watts
Center Rear Element Burner: 100 Watts
Keep Warm Burner Location: Center Rear

Cooking Controls
Bake: Yes
Broil: Yes
Kitchen Timer: Yes
Off: Yes
Oven Light: Yes
Preheat: Yes
Up / Down Arrow: Yes
Warm Zone: Yes

Cooking Controls Function
Program Fahrenheit or Celsius: Yes

Oven
Bake Element: 2600 Watts
Bake Element Pass: 4
Bake Element Type: Raised
Broil Element: 3000 Watts
Broil Element Pass: 4
Number of Rack Positions: 6
Oven Interior Color: Midnight Black
Oven Light Quantity: 1
Oven Light Type: Halogen
Oven Light Watts: 40 Watts
Rack Position Type: Embossed
Rack Type 1: Flat
Rack Type 1 Quantity: 2

Drawer
Drawer Handle Style: Integrated
Drawer Type: Storage

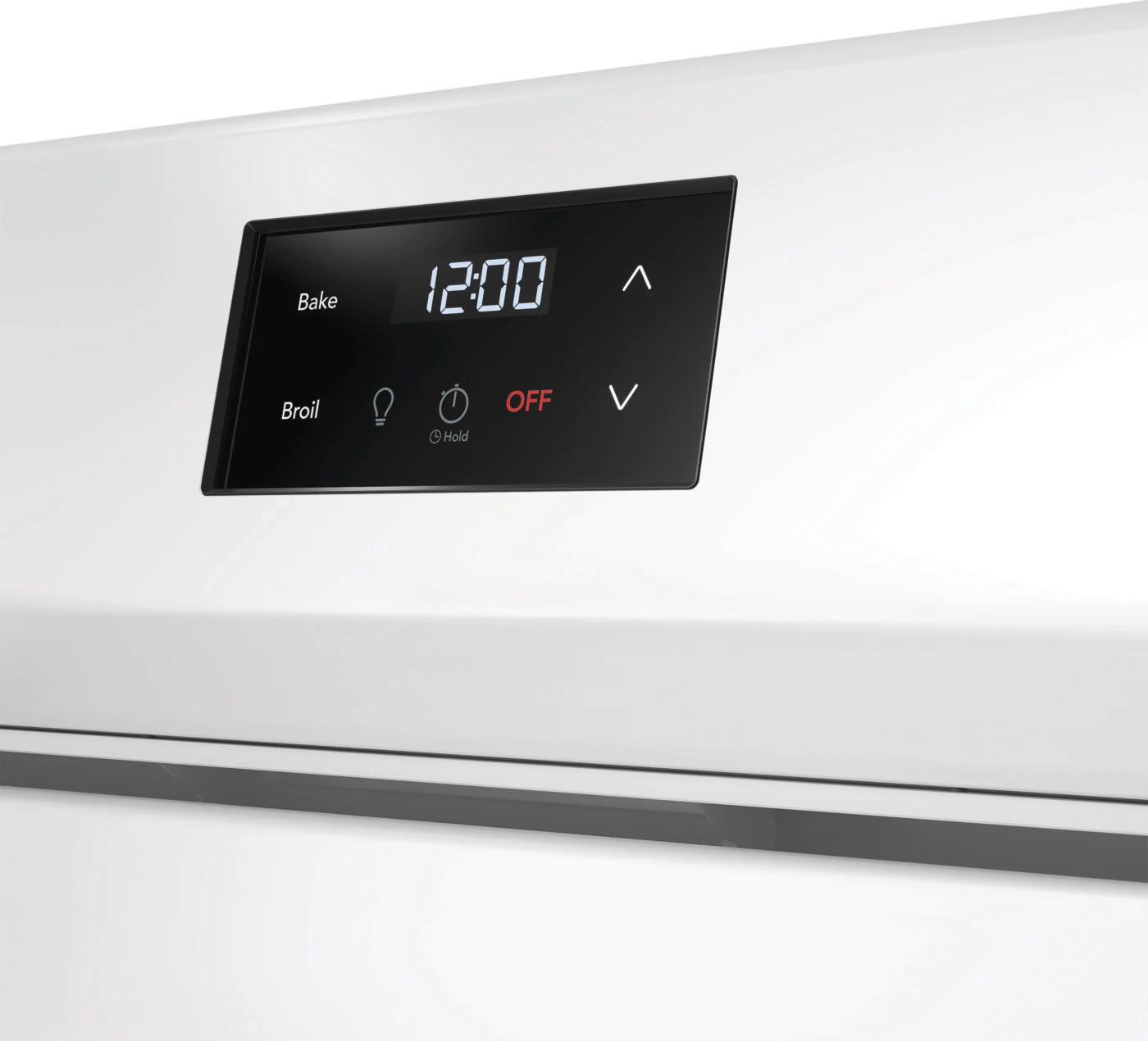

Display
Control Location: Rear
Display Interface Color: White
Display Type: LED

Dimensions and Volume
Minimum Height: 46 3/4"
Maximum Height: 47 3/4"
Width: 30"
Depth: 26"
Depth With Door 90° Open: 47 5/16"
Depth With Handle: 28 1/2"
Oven Interior Height: 18 1/8"
Oven Interior Width: 25 3/16"
Oven Interior Depth: 19 7/8"
Oven Capacity: 5.3 Cu. Ft.

Electrical Specifications
Connected Load @ 240V: 12 kW
Minimum Circuit Required: 40 Amps
Voltage Rating: 240 V

Installation
Adjustable Leveling Legs: Yes
Power Cord Included: Yes

General Specifications
Frigidaire Fit Promise: Yes
Product Weight: 160 lbs
Warranty - Labor: 1 Year
Warranty - Parts: 1 Year

Safety Certifications and Approvals
UL Listed: Yes
